STRAND B · CHAPTER 06

Taking from the Earth

Extraction is a process, a place, and a set of trade-offs.

4 lessonsmaps + evidence throughoutcumulative review
THE BIG IDEA

Mining, forestry, agriculture, fishing, water use, and energy production support modern life. Their geography determines methods, benefits, risks, and options for more sustainable practice.

LESSON 23 · Spatial significance

Mining and Mineral Resources

The ore is only the beginning

A mine exists where geology, grade, access, technology, price, permission, and infrastructure line up. Finding metal does not automatically create a mine.

Surface mines remove overlying material to reach deposits near the surface. Underground mines use shafts and tunnels for deeper ore. After rock is removed, crushing and processing separate valuable minerals from waste.

Mining can provide metals, jobs, income, export earnings, and infrastructure. It can also disturb habitat, produce waste rock and tailings, use large amounts of water and energy, and create acid drainage or metal contamination if poorly managed.

Sudbury’s nickel industry grew from a major geological deposit and national demand. Decades of smelting emissions damaged local vegetation, but pollution controls and extensive regreening produced a globally significant restoration story. The region is both an impact case and a recovery case.

A mine’s life continues after closure. Financial assurance, water treatment, tailings stability, land restoration, and community transition must be planned before extraction starts.

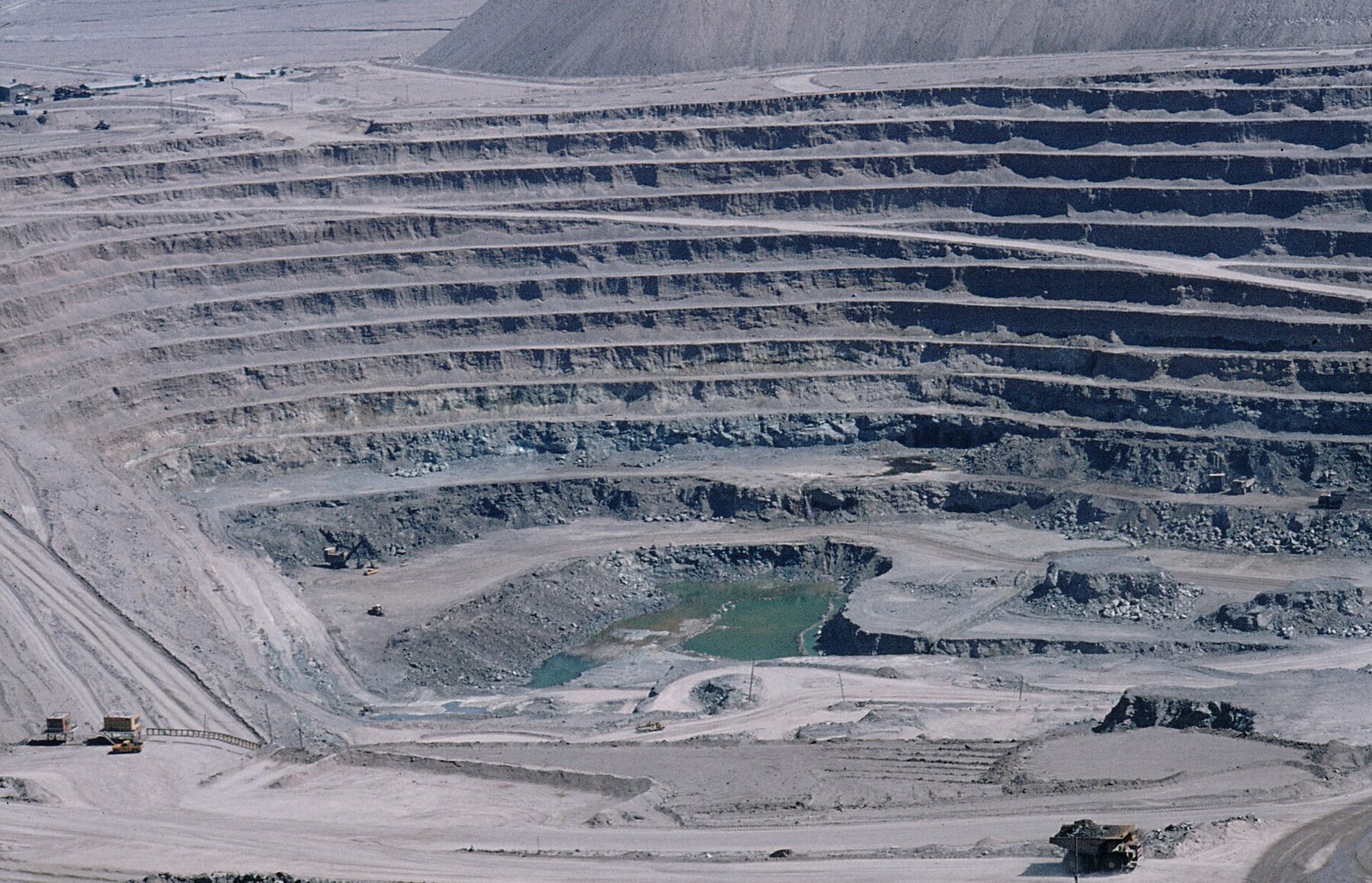

IMAGE EVIDENCEMining rearranges land at enormous scale

Chuquicamata, Chile. Open-pit mining makes the relationship between deposit location, excavation, waste, and infrastructure visible.

GEOGRAPHY WORDS

open-pit mine

a surface excavation used to remove near-surface ore

tailings

fine waste left after mineral processing

ore grade

the concentration of valuable material in rock

remediation

actions to reduce contamination and restore a damaged site

GEOGRAPHIC INVESTIGATION

Mine approval evidence board

  1. Map ore, water, habitat, roads, and communities.
  2. List jobs and material benefits.
  3. Identify waste and water risks.
  4. Compare company, community, government, and rights-holder evidence.
  5. Set closure conditions.
Reveal the geographic reasoning

A strong decision includes the full mine life cycle and does not treat jobs or environmental risk as invisible.

YOUR TURN

Why might a low-grade deposit require more rock movement?

NEXT · Forestry and Agriculture

LESSON 24 · Interrelationships

Forestry and Agriculture

Harvest the system—or exhaust it

Forests and soils are renewable only when ecosystems have time and conditions to recover.

Clear-cutting removes most trees in an area; selective cutting removes chosen trees; shelterwood and other systems shape regeneration differently. The best method depends on forest type, species, terrain, fire regime, habitat, and goals.

Forests store carbon, regulate water, protect soil, provide habitat, support cultures and recreation, and produce wood and paper. Replanting trees restores some functions, but a plantation is not automatically equivalent to an old, diverse forest.

Agriculture converts solar energy, water, soil nutrients, and labour into food. Irrigation, fertilizer, machinery, crop breeding, and trade increase output. Poor management can cause erosion, salinization, nutrient runoff, water depletion, and biodiversity loss.

Sustainable management includes protecting soil cover, rotating crops, reducing waste, planning harvest levels, retaining habitat, monitoring regrowth, and adapting to local conditions. There is no single practice that fits every biome.

IMAGE EVIDENCEPatchwork reveals forest decisions

Harvest pattern seen from above. Aerial evidence can reveal spatial extent, fragmentation, roads, and regeneration stages.

GEOGRAPHY WORDS

clear-cutting

removing most or all trees from a harvest area

selective cutting

harvesting selected trees

soil erosion

loss of topsoil by water, wind, or disturbance

monoculture

growing one crop or tree species across a large area

GEOGRAPHIC INVESTIGATION

Compare two harvest plans.

  1. Map slopes, streams, old forest, and habitat corridors.
  2. Estimate timber benefit.
  3. Predict runoff and fragmentation.
  4. Choose retention and regeneration rules.
  5. Explain what must be monitored.
Reveal the geographic reasoning

Sustainability is not just planting trees; it includes ecosystem structure, water, soil, habitat, and harvest rate.

YOUR TURN

Why is a replanted tree farm not always equivalent to the original forest?

NEXT · Fishing and Water Resources

LESSON 25 · Patterns and trends

Fishing and Water Resources

A vast ocean can still be overused

Fish move, reproduce, and respond to food, temperature, habitat, and harvest. Managing a fishery means managing a living system under uncertainty.

Industrial vessels can locate, catch, process, and freeze enormous quantities of fish. If catch exceeds reproduction for too long, the breeding population shrinks and future recovery becomes harder.

Northern cod supported Newfoundland and Labrador communities for centuries. Stocks collapsed after decades of heavy fishing and ecosystem change. Canada imposed a major moratorium in 1992, causing severe economic and social disruption. Recovery has been uneven and demonstrates that stopping harvest does not rewind an ecosystem instantly.

Bycatch removes unwanted species. Bottom trawling can disturb seafloor habitat. Illegal and unreported fishing weakens quotas. Climate-driven changes in ocean temperature and chemistry move species and add uncertainty.

Water itself is extracted for homes, farms, industry, mining, and energy. Sustainable use compares withdrawal with replenishment, protects quality, and recognizes ecological and community needs—not only the largest buyer.

CHART EVIDENCECollapse is a pattern, not one bad season

The northern cod collapse became visible through long-term catches, survey evidence, age structure, and ecosystem observations.

GEOGRAPHY WORDS

fish stock

a managed population of a fish species in an area

bycatch

unwanted organisms caught during fishing

quota

a legal limit on harvest

moratorium

a temporary stop to an activity

GEOGRAPHIC INVESTIGATION

Set a fishery rule.

  1. Examine stock trend and uncertainty.
  2. Consider jobs and food.
  3. Protect spawning habitat and age structure.
  4. Set catch and monitoring rules.
  5. Plan support if harvest must fall.
Reveal the geographic reasoning

A sustainable decision protects both the breeding population and communities dependent on it.

YOUR TURN

Why might a fish stock recover slowly after fishing stops?

NEXT · Fossil Fuels and Renewable Energy

LESSON 26 · Geographic perspective

Fossil Fuels and Renewable Energy

Every energy system has a geography

Energy choices depend on resources, land, grids, cost, technology, reliability, climate goals, and public decisions. No source has zero impact.

Coal, oil, and natural gas store energy from ancient organic material. They are energy-dense, transportable, and built into modern infrastructure. Burning them releases carbon dioxide; extraction and transport can also affect water, land, air, and communities.

Wind and solar use flow resources. Their output varies with conditions, so grids use geographic diversity, transmission, storage, flexible demand, and other generation to balance supply. Hydroelectricity can provide large low-carbon output and storage but transforms rivers and land.

Nuclear energy uses mined uranium and produces large amounts of low-carbon electricity from small fuel quantities. It also requires strict safety, waste, cost, and long-term governance decisions.

A fair comparison considers full life cycles: materials, construction, land, operation, emissions, reliability, waste, and decommissioning. The strongest energy plan is usually a system, not one magic technology.

DIAGRAM EVIDENCEAn electricity grid balances place and time

Generation, storage, transmission, demand, and weather interact. Reliability is a system property.

GEOGRAPHY WORDS

fossil fuel

coal, oil, or natural gas formed from ancient organic material

grid

the network that produces, transmits, and distributes electricity

capacity factor

actual output compared with maximum possible output over time

life-cycle impact

effects across construction, operation, and end of life

GEOGRAPHIC INVESTIGATION

Design a regional energy mix.

  1. Map local resource potential.
  2. Set reliability and emissions goals.
  3. Add transmission and storage.
  4. Identify land and community effects.
  5. Explain why the mix fits this place.
Reveal the geographic reasoning

Good energy geography matches technologies to regional conditions while accounting for whole-system trade-offs.

YOUR TURN

Why can two regions choose different low-carbon energy mixes?

PULL IT TOGETHER

Rebuild Chapter 6

Nothing here is new.
01
Mine life cycle

Why plan closure before opening?

Water, waste, land restoration, finances, and community transition can last long after production.

02
Renewable forest?

What must be monitored beyond trees planted?

Species diversity, habitat structure, soil, water, regeneration success, and harvest rate.

03
Cod lesson

What does the cod collapse show about renewable resources?

A renewable population can collapse when harvest and ecosystem pressures exceed recovery.

04
Energy system

Why compare full life cycles?

Construction, materials, operation, emissions, reliability, waste, and closure all create impacts.

ORDER THE SYSTEM

Put the chapter chain in a logical order.

Use cause, process, and consequence—not memorized dates.

1Manage waste, recovery, and closure
2Use the product or energy
3Process and transport
4Build infrastructure
5Choose an extraction or harvest method
6Locate the resource

CHAPTER SELF-CHECK

Ten questions. Whole chapter.

1. What is ore grade?
2. What are tailings?
3. What can selective cutting reduce?
4. Why protect soil cover?
5. What is bycatch?
6. What happened in 1992 to the northern cod fishery?
7. Which energy source is a flow resource?
8. Why does transmission matter?
9. What makes hydroelectricity a trade-off?
10. What is the best comparison standard?

QUICK REVIEW

You should now be able to…

compare surface and underground mining

explain mine waste and closure

compare forest and agricultural practices

analyse fish stock evidence

explain the northern cod collapse

compare energy systems using full life-cycle evidence

CHAPTER SOURCES

Sources and further reading

Natural Resources Canada: MiningOPEN ↗FAO ForestryOPEN ↗Fisheries and Oceans Canada: Northern codOPEN ↗Canada Energy RegulatorOPEN ↗
