STRAND A · CHAPTER 01
How Geographers Read the World
Maps are arguments about space—not decorations.
Geographers ask where things are, why they are there, how places connect, and why the same place matters differently to different people.
CHAPTER 1
Lesson One: What Is Geography?
The study of places and relationships
Geography is the study of places and the relationships between people and their environments. It begins with a simple question: why here?
Physical geography studies Earth’s land, water, air, climate, and living systems. Human geography studies people, settlements, movement, economies, cultures, and power. Real geographic problems usually combine both. A flood is physical; who is protected, who is displaced, and where money is spent are human decisions.
Geographers use four thinking tools. Spatial significance asks why a location matters. Patterns and trends look for repetition and change across space or time. Interrelationships connect parts of a system. Geographic perspective asks how different people understand the same place based on their needs, knowledge, and power.
A satellite image can show a river, a city, and a forest edge at once. It cannot automatically tell us why the forest was cleared or whether local residents supported it. Geography combines visible evidence with data, testimony, maps, and careful questions.
You already think geographically whenever you choose a route, notice a neighbourhood changing, compare weather apps, or wonder why a store was built on one corner rather than another. This course makes that thinking deliberate and evidence-based.
Earth from Apollo 17, 1972. One image contains weather, water, land, and human home—yet many human patterns are invisible at this scale.
Physical and human geography meet in real places
A place is more than a dot on a map. It has a location, physical features, human features, and connections to other places. Toronto, for example, sits beside Lake Ontario. The lake is a physical feature, while the streets, neighbourhoods, port facilities, railways, and bridges are human features built through many decisions.

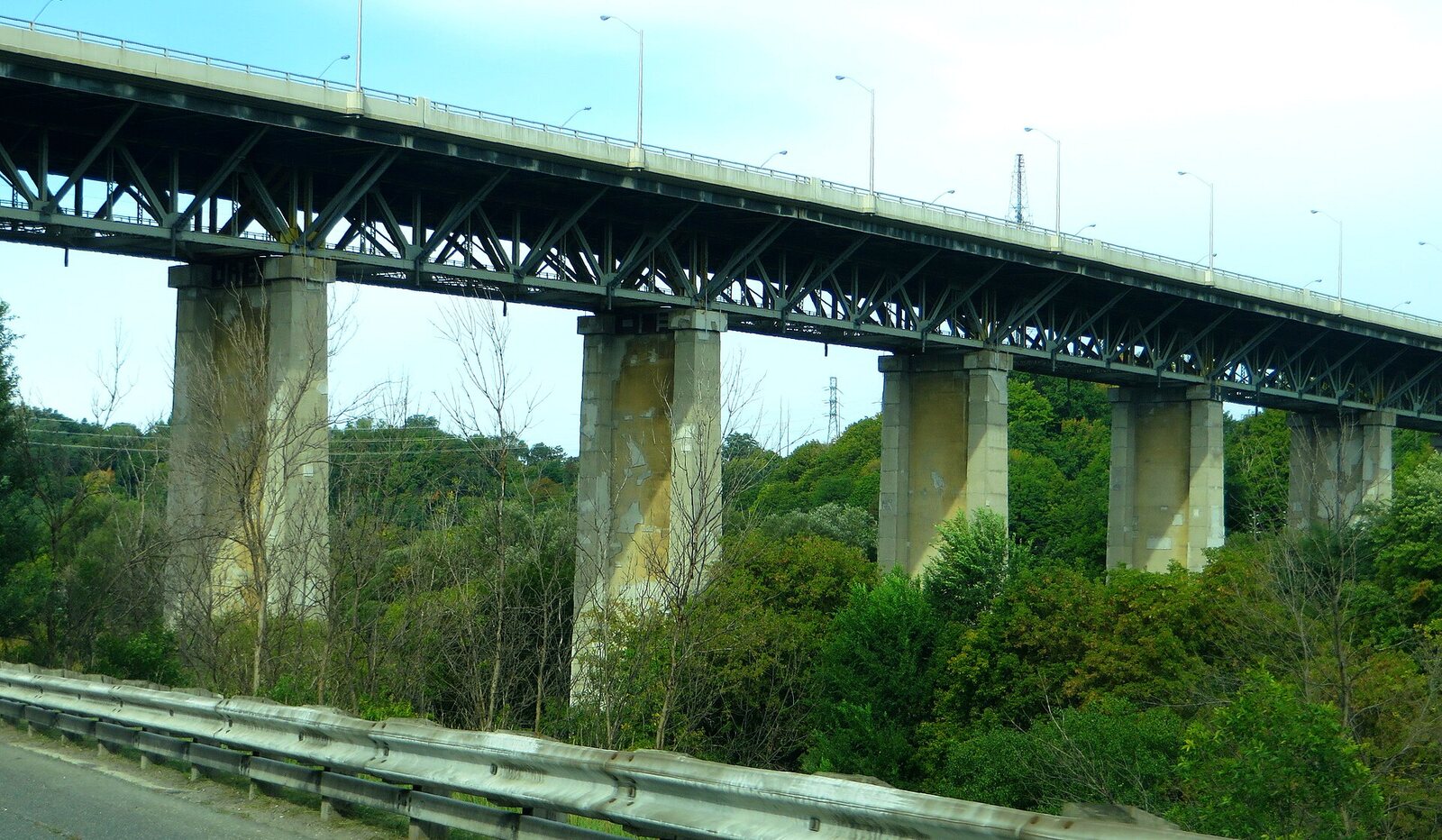

The two branches of geography constantly overlap. The Don Valley existed before the Don Valley Parkway, but the valley provided a long, low corridor through the city. People used that physical shape to build transportation routes. Construction then changed drainage, vegetation, wildlife habitat, and the way people move through the valley. Geography explains that two-way relationship.
Compare the two scales. The satellite image reveals the city-wide pattern, while the closer photograph shows how transportation infrastructure occupies a natural valley. Together they show why geographers study connections, not isolated objects.
Four questions turn observations into geography
Geographers often begin with four thinking moves. Spatial significance asks why this location matters. Patterns and trends ask what repeats or changes across space and time. Interrelationships ask how parts of a system affect one another. Geographic perspective asks how the same place may be experienced differently by people with different needs, knowledge, or power.
Apply those moves to the mouth of the Don River. Its location beside downtown and Lake Ontario makes it important for water, wildlife, recreation, transportation, and flood planning. A commuter may value a fast route. A nearby resident may worry about traffic or flooding. A park user may value habitat and access. A planner must consider several of these interests at once.
No single scale tells the whole story. A wide view gives location and pattern; a close view gives detail. Geographers move among scales because each view answers different questions and hides different information.
Evidence tells us what we may claim
A satellite image records reflected light from Earth’s surface. It can reveal the location of water, roads, fields, forests, and built-up areas. It may show a pattern of change if images from different dates are compared. It cannot, by itself, explain why a decision was made or how people felt about it.
Suppose an image shows a clear-cut forest. We may observe exposed ground beside standing trees. We may infer that timber was harvested. To explain why it happened, whether rules were followed, or how nearby communities were affected, we need more evidence such as permits, company records, field measurements, community accounts, and maps from different dates.
The photograph provides evidence of a human action in a physical setting. Notice the sharp edge between standing forest and exposed ground. The image supports questions about habitat, soil, runoff, work, and land-use decisions, but it cannot answer those questions alone.
Bring it together
Geography is not a race to memorize every capital, river, or mountain. Place names help us locate evidence, but the larger task is explanation. A strong geographic statement names what is where, describes the visible pattern, and explains a relationship using appropriate evidence.
When you meet a new place, begin with three moves: identify a physical feature, identify a human feature, and explain one connection between them. Then ask whose perspective is missing and what additional evidence would improve the explanation. That is the beginning of geographic thinking.
GEOGRAPHY WORDS
the study of Earth’s natural features and processes
the study of people, places, movement, and human systems
why a location or pattern matters
how people understand a geographic issue from different positions
a two-way connection in which parts of a system affect one another
an arrangement that repeats or clusters across space
the level of detail or size of area being examined
an image of Earth’s surface collected by a sensor on a satellite
GEOGRAPHIC INVESTIGATION
What can this image prove—and what would require another source?
- List three physical features you can observe.
- Name one human pattern the image cannot show clearly.
- Choose one source that could fill that gap.
Reveal the geographic reasoning
Good geography separates observation from explanation. The image proves visible patterns; it does not explain human choices by itself.
YOUR TURN
Which question is most clearly geographic?
STUDY + APPLY
Questions that rebuild the whole lesson
Answer from memory first. Open the explanation only after you have committed to an idea.
01UNDERSTANDINGHow are physical geography and human geography different?
Physical geography studies natural features and processes. Human geography studies people, settlements, movement, economies, culture, power, and the places people build.
02CONNECTIONWhy is the Don Valley both physical and human geography?
The valley, river, and vegetation are physical. The highway and bridges are human. The valley influenced where transportation was built, and the construction changed the valley.
03SCALEWhat becomes easier to see when a geographer moves from a satellite view of Canada to a local photograph of the Don River?
The national view shows broad location and physical regions. The local view shows details such as the river bank, vegetation, nearby structures, and present conditions.
04EVIDENCEWhat can the clear-cut photograph support, and what can it not prove by itself?
It supports the observation that forest cover was removed in a visible area. It cannot prove why the cutting occurred, whether it was legal, or how every community experienced it.
05PERSPECTIVEWhy might a commuter and a park user value the Don Valley differently?
They use the same place for different purposes. A commuter may value travel time, while a park user may focus on habitat, quiet, safety, and access to green space.
06SYNTHESISChoose a familiar place. Identify one physical feature, one human feature, and one interrelationship between them.
Answers will vary. A complete answer must name visible physical and human evidence and explain how one affected the other.
CHAPTER 1
Lesson Two: Mapping Skills
Every map selects, simplifies, and communicates
A map is a representation of Earth’s features on a flat surface. Because the world is too large and complicated to copy perfectly, every map makes choices.
A useful map normally needs a clear title, legend, orientation, scale, and source. The title states the map’s purpose. The legend decodes symbols. Orientation shows direction. Scale links map distance to real distance. The source tells us where the information came from and when it was produced.

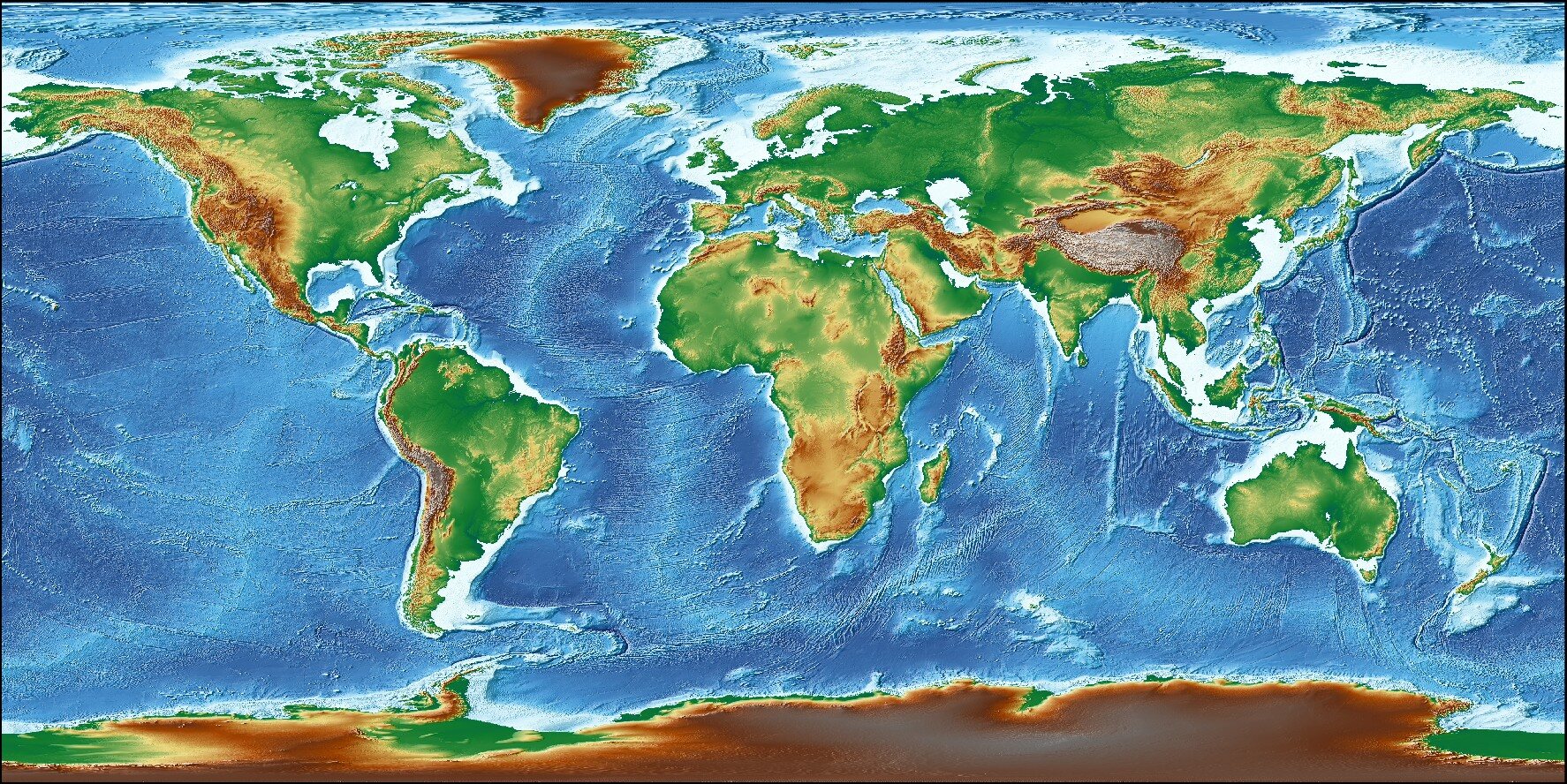

Political maps emphasize borders and places. Physical maps emphasize terrain and water. Thematic maps focus on one subject—such as population density, rainfall, or mineral production. Choosing the wrong map is like bringing a thermometer to measure distance: the tool may work, but not for your question.
Flattening a globe creates distortion. Some projections preserve direction, some preserve area, and some reduce overall distortion. No flat world map can perfectly preserve shape, area, distance, and direction at the same time. That is not a flaw to hide; it is a limitation to understand.
Colour also makes an argument. Darker shading can imply more; red can suggest danger; thick borders can make political boundaries feel permanent. A map reader checks the legend before trusting the visual impression.

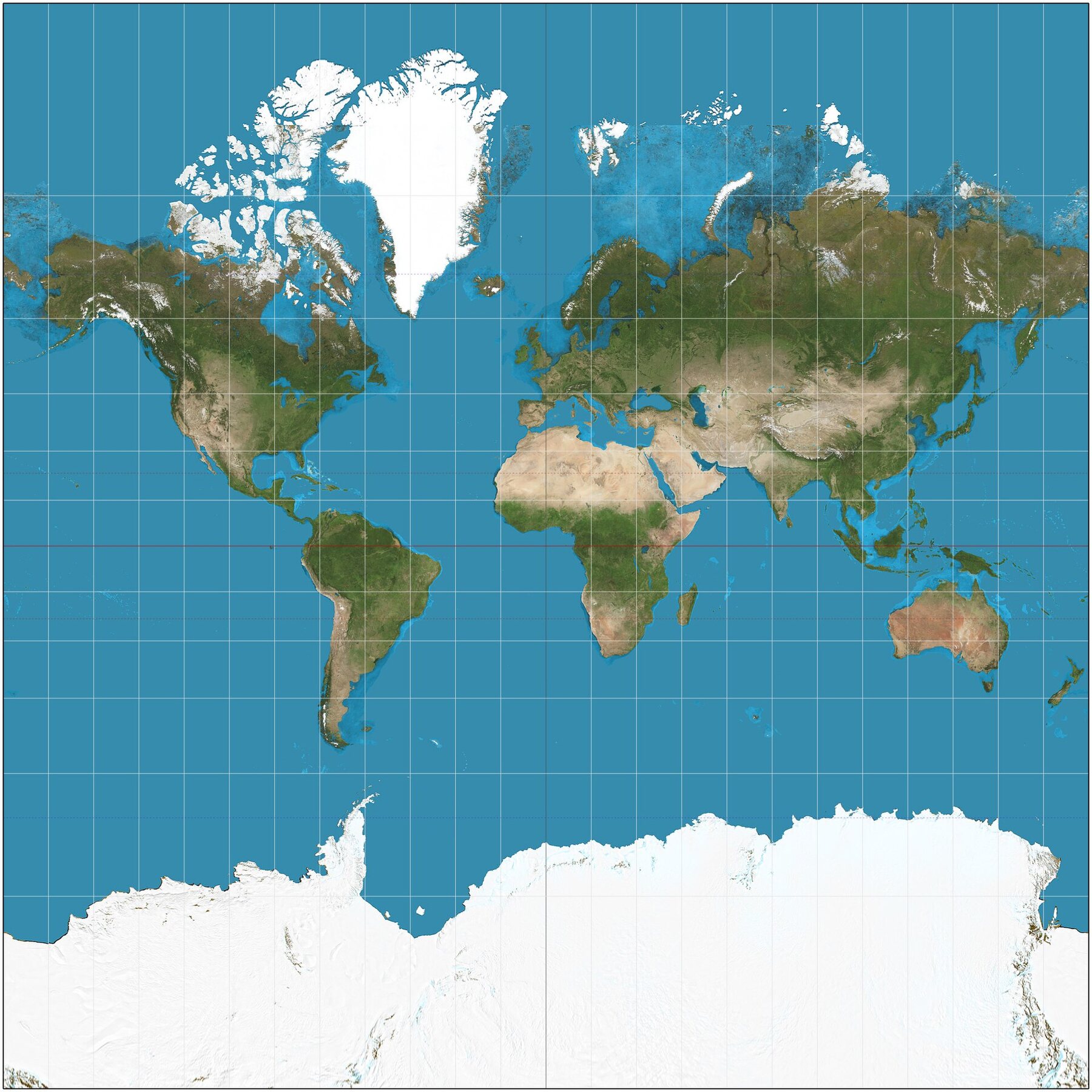

Mercator projection. Useful for navigation because directions are represented consistently, but high-latitude areas appear much larger than they are.
Read the map before reading the pattern
A map needs enough information for a reader to decode and judge it. Start with the title to learn its purpose. Use the legend to translate colours and symbols. Check orientation to understand direction. Read the scale to connect map distance with real distance. Finally, check the source and date to decide whether the information is credible and current enough for the task.

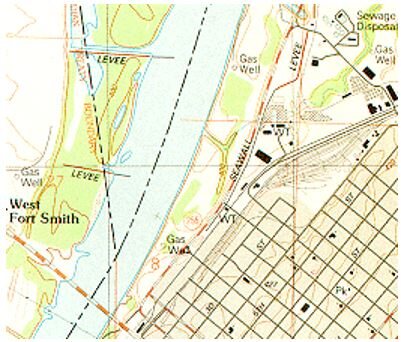

Scale changes what a map can do. A small-scale map shows a large area with little detail, such as the whole world. A large-scale map shows a smaller area with more detail, such as a neighbourhood. The words can feel backwards, but the scale fraction explains them: 1:10,000 is larger than 1:10,000,000.
Use the title and legend before interpreting the colours or borders. The world is shown at a small scale, so individual streets and buildings cannot appear. The Robinson projection reduces some obvious distortions but does not remove them.
Choose a map that matches the question
Political, physical, and thematic maps can show the same region while emphasizing different evidence. A political map highlights borders and named places. A physical map emphasizes land, water, and elevation. A thematic map focuses on one topic, such as rainfall, population density, election results, or mineral production.
The right choice depends on the job. A political map helps compare countries. A physical or topographic map helps plan a route through mountains. A rainfall map helps investigate climate or water supply. A map can be accurate and still be useless for a question it was not designed to answer.
The planet has not changed between these maps; the cartographer’s purpose has. Notice how each design makes certain questions easier to answer and leaves other information out.

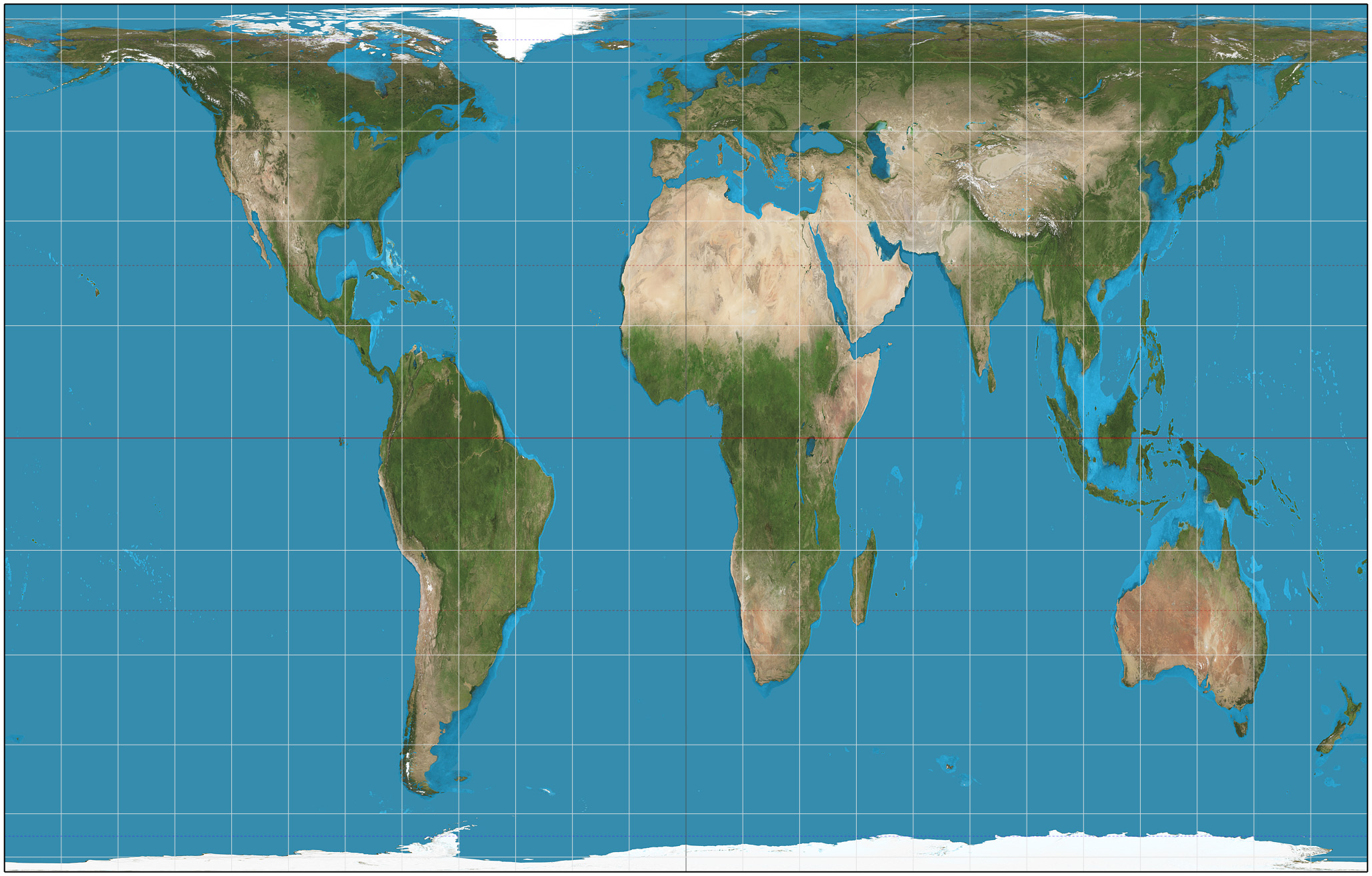

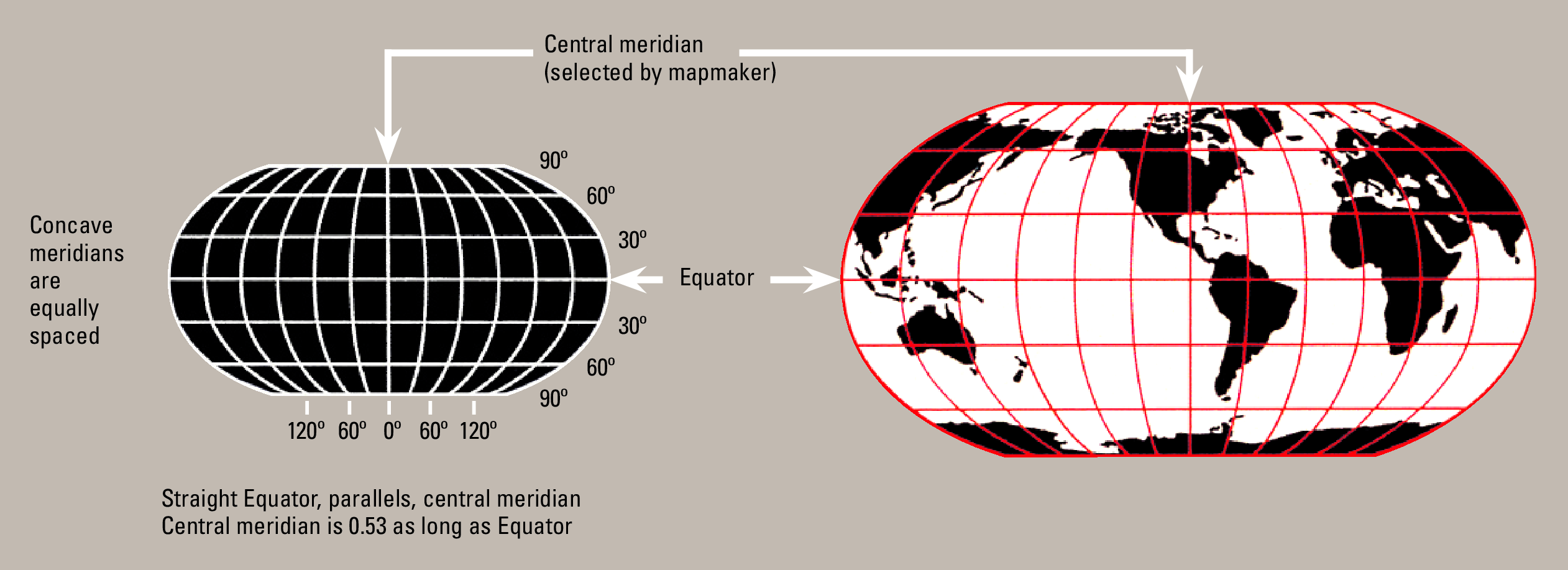

Every flat world map makes a trade-off
Earth is curved, so a world map must use a projection: a mathematical method for moving locations from a globe onto a flat surface. No projection can preserve area, shape, distance, and direction perfectly everywhere. Distortion is unavoidable. The important question is whether the chosen distortion fits the map’s purpose.
Mercator keeps local angles and compass directions useful for navigation, but it greatly enlarges high-latitude areas. Gall–Peters preserves relative area, but many shapes look stretched. Robinson is a compromise designed for a balanced general view. It reduces several distortions without making any one property perfect.
Compare Greenland, Africa, and Antarctica across the three maps. Their real locations do not change, but their apparent size and shape do. A projection should therefore be judged by the job it is meant to perform.
Design can change the message without changing the data
Colour, class boundaries, symbol size, and line thickness guide attention. Dark colours often seem like ‘more,’ and red can feel urgent even when a legend gives it a neutral meaning. A careful reader follows the legend rather than trusting the emotional first impression.
A map is best understood as a model and an argument about space. It selects information, simplifies reality, and communicates a purpose. Before accepting its message, ask who made it, when it was made, which data were included, what was omitted, and whether another map would tell a different but still accurate part of the story.

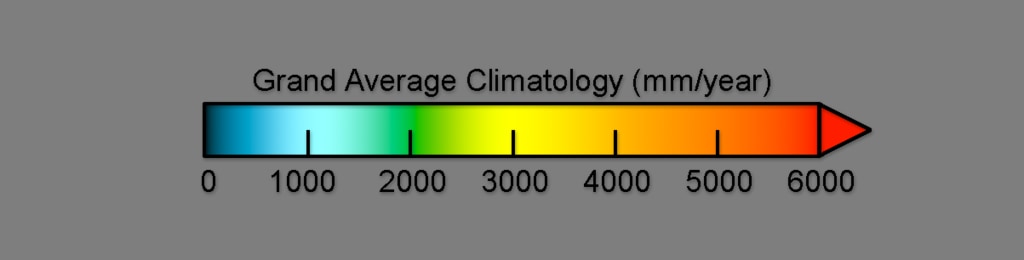

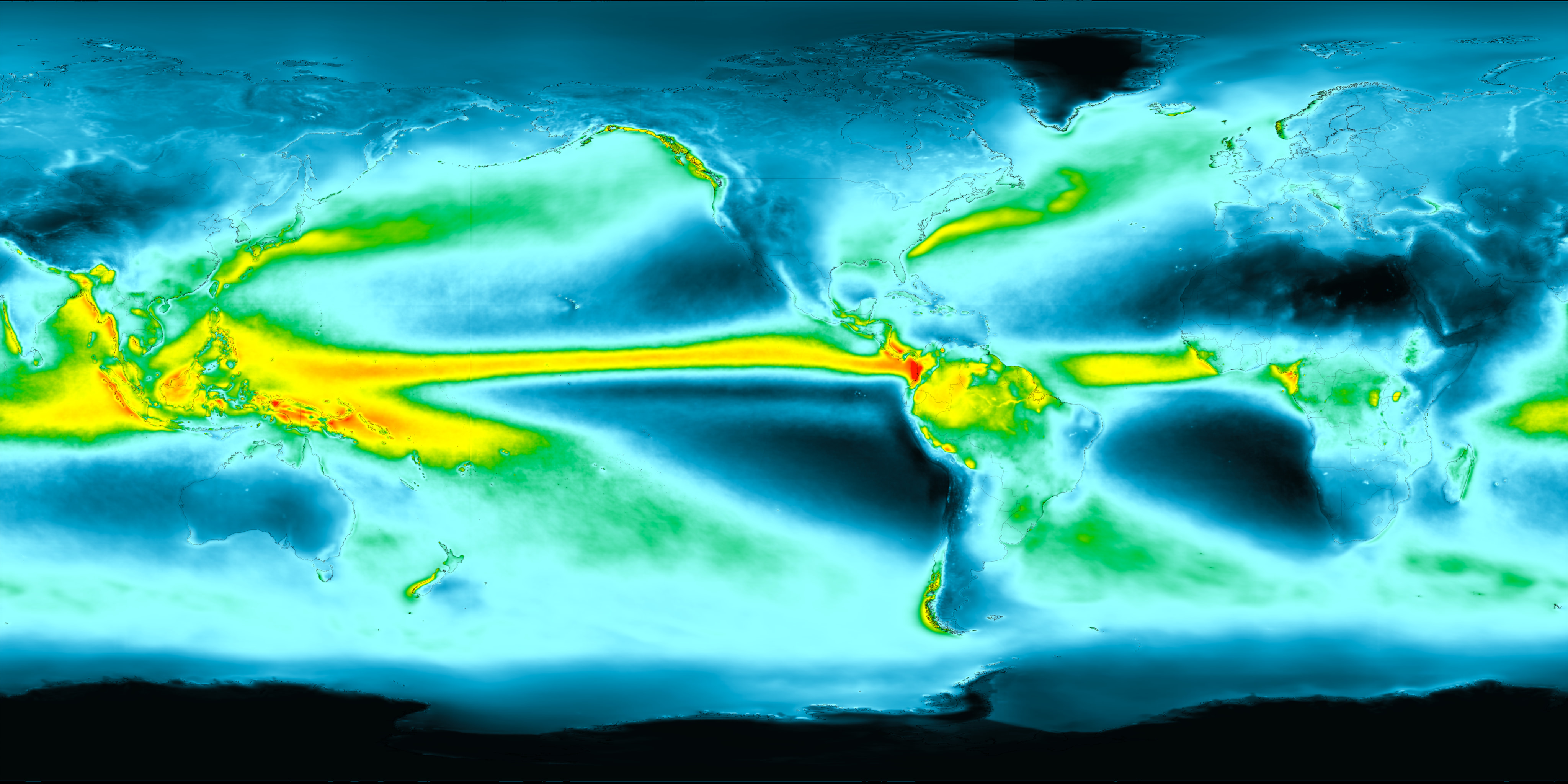

This thematic map uses colour to show average precipitation from satellite observations. Notice the wet tropical belt near the Equator and dry subtropical regions. The map supports a broad rainfall pattern, but it does not show every storm, season, or local slope.
GEOGRAPHY WORDS
a person who designs and produces maps
the key that explains map symbols and colours
the relationship between map distance and real-world distance
a method for representing Earth’s curved surface on a flat map
the way a map shows direction, often with a north arrow or coordinate grid
a map designed to show one topic or dataset
a change in area, shape, distance, or direction caused by representing a curved surface on a flat map
a map of a large area with relatively little detail
a map of a small area with relatively great detail
GEOGRAPHIC INVESTIGATION
Audit a map before using it.
- Read the title and date.
- Decode the legend.
- Identify the projection or scale if given.
- State one pattern the map shows and one limitation.
Reveal the geographic reasoning
A trustworthy map reader asks what was selected, what was left out, and whether the design fits the question.
YOUR TURN
Why can Greenland look almost as large as Africa on a Mercator map?
STUDY + APPLY
Questions that rebuild the whole lesson
Answer from memory first. Open the explanation only after you have committed to an idea.
01MAP ELEMENTSWhy should a reader check a map’s source and date?
The source helps judge credibility, and the date shows whether the information is current enough for the question.
02SCALEWhy can a world map not guide a walk through a neighbourhood?
A world map is too small in scale and omits the streets, paths, and buildings needed for a local route.
03MAP TYPEWhich map type would best show average rainfall across Canada, and why?
A thematic map, because it can use colours or symbols to show one measured topic across space.
04PROJECTIONWhy does Mercator make Greenland appear much larger than it really is?
Mercator distortion increases toward the poles, enlarging high-latitude areas.
05VISUAL EVIDENCEWhat broad rainfall pattern is visible on the NASA map, and what can the map not show?
Wet regions cluster near parts of the Equator, while several subtropical regions are dry. The map does not show every season, storm, or local variation.
06SYNTHESISExplain why there is no single best world map projection.
Every flat projection distorts something. The best choice depends on whether the map needs to protect area, local shape, direction, distance, or a balanced overall appearance.
CHAPTER 1
Lesson Three: Latitude, Longitude and Coordinates
A global address system
Latitude and longitude form a coordinate grid that lets anyone describe a location on Earth without relying on a street address.
Latitude measures angular distance north or south of the Equator. Lines of latitude run east–west, but they measure north–south position. The Equator is 0°. The poles are 90° north and 90° south.
Longitude measures angular distance east or west of the Prime Meridian at Greenwich, England. Lines of longitude meet at the poles. The Prime Meridian is 0°, and the International Date Line lies roughly opposite near 180°.
Coordinates are written latitude first, then longitude: 43.7° N, 79.4° W locates Toronto. Minutes and seconds can make coordinates more precise, while decimal degrees are common in digital maps and GPS.
Coordinates identify a point, but they do not explain the place. A latitude–longitude pair can locate a community; understanding its climate, land, population, and significance requires more evidence.
A coordinate is an intersection: a horizontal latitude line and a north–south longitude line.
The grid gives every point a global address
Latitude and longitude are angular measurements, not distances measured in kilometres. Imagine lines drawn from Earth’s centre to the surface. The angle between those lines tells how far a location lies north or south of the Equator, or east or west of the Prime Meridian.
One coordinate is not enough. A latitude such as 45° N forms a complete circle around Earth, so many places share it. A longitude such as 75° W runs from pole to pole. Only the intersection of both measurements identifies one point.

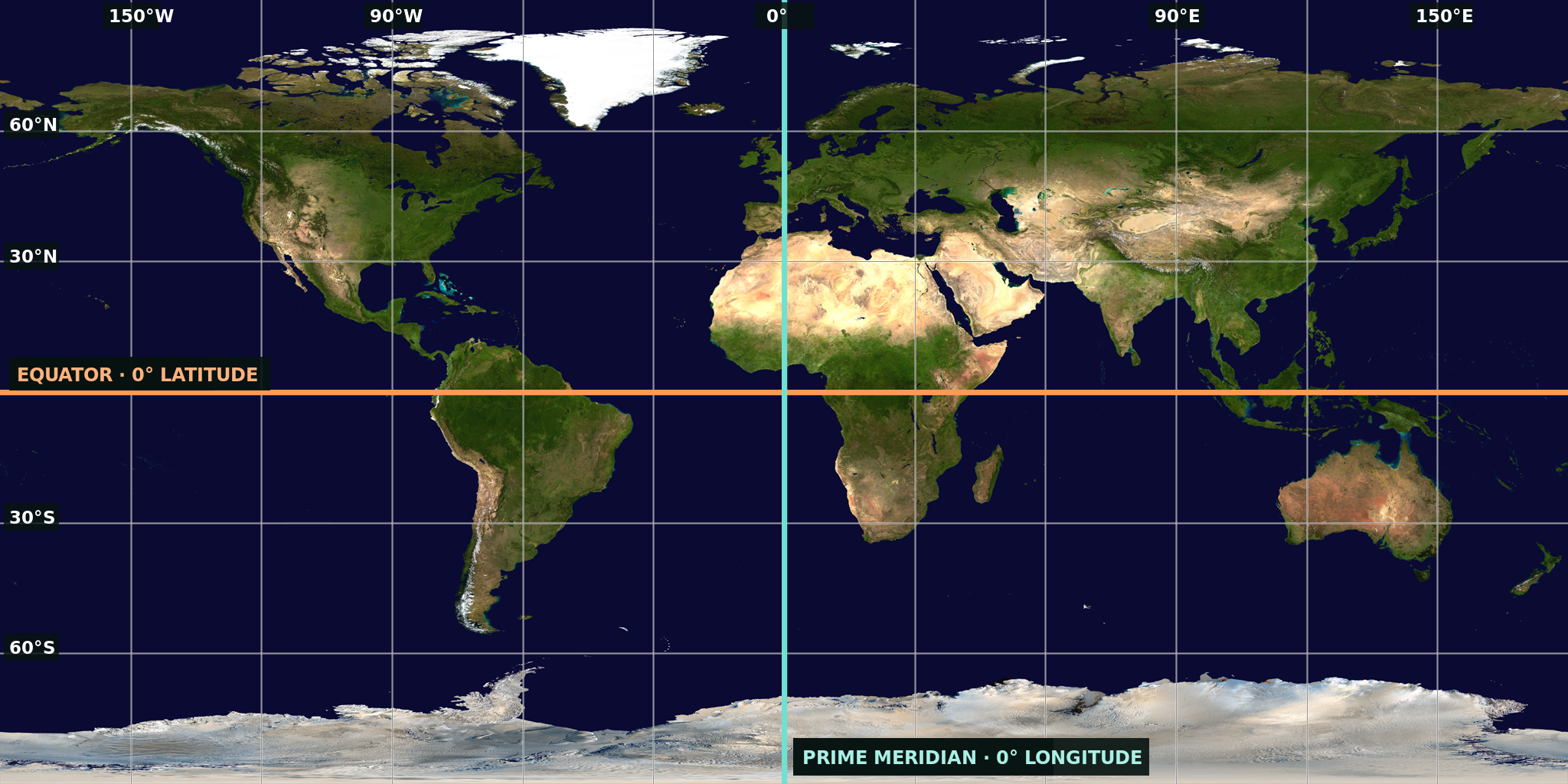

The Equator is the orange 0° latitude line across the middle. The Prime Meridian is the aqua 0° longitude line running through Europe and Africa. The other parallels and meridians are marked every 30°, so students can read the grid directly from the map.
Lines run one way and measure another
Latitude lines run east–west, but they measure north–south position from the Equator. They remain parallel and become smaller circles toward the poles. The Equator is 0° latitude, and the North and South Poles are 90° N and 90° S.
Longitude lines, also called meridians, run north–south from pole to pole, but they measure east–west position from the Prime Meridian. Meridians meet at the poles. Longitude increases from 0° to 180° east or west, near the opposite side of Earth and the International Date Line.
Write, check, and use a coordinate
Coordinates are written latitude first and longitude second. Toronto is approximately 43.7° N, 79.4° W. The hemisphere letters matter: changing N to S or W to E moves the point thousands of kilometres. Latitude can never exceed 90°, and longitude can never exceed 180°.
Digital maps commonly use decimal degrees, while some paper maps use degrees, minutes, and seconds. Both systems describe the same grid at different levels of precision. More digits give a more precise point, but they do not guarantee the measurement is accurate. A copied or measured error can still be written with many decimal places.
The grid shows Canada between about 40° N and 80° N and roughly 50° W to 140° W. Trace a horizontal latitude line first, then a vertical longitude line. Their intersection gives a coordinate that can be checked directly on the map.
A coordinate locates a point; geography explains the place
Emergency crews, aircraft, ships, scientists, surveyors, and phones use coordinates because the system works across languages and local place names. A distress message saying ‘we are surrounded by water’ is almost useless. A correct latitude and longitude can direct rescuers to one location.
Coordinates do not explain terrain, climate, population, culture, or risk. After locating Toronto, a geographer might add a satellite image, relief map, climate graph, census data, or local testimony. Location begins the investigation; it does not complete it.
All three sources can be connected to the same point, yet each answers a different question. Coordinates tell where; other geographic evidence helps explain what the place is like and why it matters.
GEOGRAPHY WORDS
distance north or south of the Equator, measured in degrees
distance east or west of the Prime Meridian, measured in degrees
0° latitude
0° longitude
a line of longitude running from pole to pole
one half of Earth, such as north/south or east/west
a coordinate format that expresses fractions of a degree with decimal numbers
the level of detail in a measurement
GEOGRAPHIC INVESTIGATION
Coordinate detective
- Decide whether the place is north or south of the Equator.
- Decide whether it is east or west of the Prime Meridian.
- Write latitude first.
- Check whether the hemispheres match the map.
Reveal the geographic reasoning
A sign error can move a point across an ocean. Coordinates are precise only when degrees and hemispheres are both correct.
YOUR TURN
Which coordinate could locate a place in Canada?
STUDY + APPLY
Questions that rebuild the whole lesson
Answer from memory first. Open the explanation only after you have committed to an idea.
01UNDERSTANDINGWhy does one latitude not identify a single place?
A latitude forms a circle around Earth, so many places share it. Longitude is also needed to locate the intersection.
02MISCONCEPTIONLatitude lines run east–west. What direction do they measure?
They measure north or south of the Equator.
03CHECKINGWhat two problems make 95° N, 20° E impossible for Canada?
Latitude cannot be greater than 90°, and Canada is not located at an eastern longitude of 20° E.
04APPLICATIONWrite Toronto’s approximate coordinate in the correct order.
43.7° N, 79.4° W: latitude first, longitude second.
05EVIDENCEWhat does the satellite image explain that Toronto’s coordinate does not?
It shows the shoreline, extent of settlement, green spaces, farmland, and transport patterns around the point.
06SYNTHESISWhy are coordinates essential for rescue work but not enough for understanding a place?
They give a precise shared location, but rescuers and geographers still need terrain, weather, access, population, and other evidence.
CHAPTER 1
Lesson Four: Reading Maps and Geographic Data
Patterns are evidence, not automatic explanations
Geographic data becomes powerful when it is placed on a map, but visual patterns can mislead if we ignore totals, rates, scale, or missing information.
A choropleth map shades areas according to a value, such as population density or average rainfall. It works best with rates or percentages. Using raw totals can make large or populous regions appear more important simply because they contain more people.
A proportional-symbol map changes symbol size to show quantity. A dot-density map uses repeated dots to show distribution. A flow map uses lines or arrows to show movement. Each map answers a different kind of question.
Geographers compare maps to look for relationships. If high rainfall and dense forests appear in similar places, that pattern suggests an interrelationship worth investigating. It does not prove rainfall is the only cause. Soil, temperature, elevation, and human land use may also matter.
Always check date, units, classification method, and source. A map of wildfire area by year means something different from a map of wildfire count. A map can be accurate and still answer the wrong question.
EXAMPLE DATA: REPORTED ROAD COLLISIONS
Three fictional regions · one year · rates calculated per 1,000 residents
How to read it: Region A reports the largest total, but Region B has the highest rate. A total answers “how many?” A rate makes differently sized populations easier to compare.
A total counts how many. A rate divides by a useful base so differently sized populations or areas can be compared more fairly.
Totals and rates answer different questions
A total tells how many events occurred. A rate compares that total with a meaningful denominator, such as population, drivers, trips, area, or time. If a large city reports more collisions than a small city, the total alone does not show that each driver faces greater danger.
To build a rate, divide the number of events by the relevant population and multiply by a common base, such as 10,000 drivers. The denominator must match the question. Collisions per resident, per licensed driver, and per kilometre travelled are all valid measures, but they compare different things.
Thematic maps turn data into spatial patterns
A choropleth map groups values into classes and fills areas with colours or shades. It is usually best for rates, percentages, or averages. Raw totals can mislead because large or heavily populated regions often contain more of almost everything.
Other thematic maps solve other problems. Proportional symbols show quantities with differently sized circles or shapes. Dot-density maps show distribution with repeated dots. Flow maps use lines or arrows to show movement. The map type should match whether the question concerns comparison, concentration, distribution, or movement.
Bright areas cluster around many coasts, cities, and transport corridors, while large dark gaps appear in sparsely settled regions. The image suggests settlement and infrastructure patterns, but brightness is not a direct count of population and does not explain every cause.
Classification can change the first impression
A choropleth legend divides data into class ranges. Moving the class boundaries can make the same values look sharply divided or fairly similar. No measurement has changed, but the map’s visual message has. Readers should check how many classes exist, where breaks occur, and whether the colours exaggerate differences.
Units matter just as much. A wildfire map showing number of fires answers ‘how many?’ A map showing total area burned answers ‘how much land?’ Ten small fires can burn less land than one enormous fire. Both maps may be accurate while telling different geographic stories.
The colours represent measured precipitation ranges, not temperature or vegetation. Read the legend before naming wet and dry areas. This world-scale map reveals broad zones but smooths out many local differences.
A matching pattern is a clue, not proof
Geographers compare layers to investigate interrelationships. If rainfall and green vegetation appear in many of the same regions, the overlap suggests a useful question: does rainfall help explain the vegetation pattern? The maps support a correlation, meaning the variables vary together.
Correlation does not prove that one factor acts alone. Temperature, soil, elevation, seasons, fire, farming, and urban growth also shape vegetation. A careful conclusion states the visible relationship, offers a possible process, checks other variables, and names additional evidence needed to test the explanation.
The broad overlap suggests an interrelationship, especially in tropical and desert regions. Important exceptions show why rainfall cannot be the only explanation. The maps begin the investigation; they do not prove a single cause.
GEOGRAPHY WORDS
a map that shades areas according to a data value
the number of people per unit of area
an arrangement or distribution across space
a relationship in which variables change together; not proof that one causes the other
the quantity used as the base of a rate, such as population or number of drivers
a map that changes symbol size to represent quantity
a map that uses repeated dots to show distribution
a map that uses lines or arrows to show movement
the method used to group data values into map categories
GEOGRAPHIC INVESTIGATION
Interrogate a thematic map.
- Identify the variable and unit.
- Find the highest and lowest categories.
- Describe one cluster or gap.
- Offer two possible explanations.
- Name data needed to test them.
Reveal the geographic reasoning
Strong geographic conclusions move from pattern to possible explanation to additional evidence.
YOUR TURN
A map shows the most road collisions in the largest city. What should you check before calling it the most dangerous?
STUDY + APPLY
Questions that rebuild the whole lesson
Answer from memory first. Open the explanation only after you have committed to an idea.
01UNDERSTANDINGWhy can a collision total make a large city look more dangerous than it is?
A large city has more people and trips, creating more opportunities for collisions. A rate is needed for a fairer comparison.
02APPLICATIONWhich denominator would best compare road danger for drivers in two cities?
Collisions per licensed driver, per trip, or per kilometre travelled could work. The best choice depends on the exact question.
03MAP TYPEWhich thematic map would best show movement of migrants between provinces?
A flow map, because lines or arrows can show direction and amount of movement.
04VISUAL EVIDENCEDescribe one cluster and one gap visible on the night-lights map.
Answers will vary, but they should name a bright cluster or corridor and a large darker region using locations visible on the map.
05CAUSEWhy does a similarity between rainfall and vegetation maps not prove rainfall is the only cause?
Other factors such as temperature, soil, elevation, seasons, fire, and land use also affect vegetation.
06SYNTHESISWrite a careful claim about the rainfall and land-cover maps.
Wetter regions are often greener, suggesting a relationship, but the maps alone do not prove one-factor causation and important exceptions require more evidence.
CHAPTER 1
Lesson Five: Topographic Maps and Geographic Inquiry
Turn contour lines back into land
A topographic map uses contour lines to represent elevation. With practice, a flat page becomes a three-dimensional landscape.
Every contour line connects points of equal elevation. The contour interval is the vertical difference between neighbouring lines. If the interval is 20 metres, moving across five intervals means an elevation change of 100 metres.
Closely spaced lines show a steep slope; widely spaced lines show a gentle slope. Closed rings usually show a hill or peak. When contours cross a valley, they form a V that points upstream. Ridges make a V or U that points downhill.
Relative relief is the difference between the highest and lowest elevations in an area. A cross-section turns contours into a side view: mark where a line crosses each contour, plot the elevations, and connect the points smoothly.
Topographic maps help hikers choose routes, engineers plan roads, emergency crews understand terrain, and geographers investigate drainage and land use. The lines are not the landscape; they are a coded model of it.
This real USGS map combines brown contour lines with water, roads, buildings, vegetation, place names, and scale. The practice maps below isolate terrain so you can learn the contour code first.
TOPOGRAPHIC MAP LAB
Three maps. Three levels of challenge.
Do not open the reasoning until you have answered from the contour evidence.
- What is the contour interval?
- What is the highest possible elevation at point A?
- Is the slope steeper near A or near B?
Check the map reasoning
The interval is 20 m. A is inside the 160 m contour, so it is at least 160 m but below 180 m. The slope is steeper where lines are closer together; compare spacing before deciding.
- What is the contour interval?
- Which way does the stream flow?
- Why do the contour lines form a V where they cross the stream?
Check the map reasoning
The interval is 20 m. The contour Vs point upstream, toward the top of the map, so water flows generally south. The V forms because each contour bends uphill while crossing the valley.
- Which peak is higher?
- What landform is point S?
- Give the narrowest possible elevation range for S.
Check the map reasoning
The eastern peak is higher because it has more closed contours. S is a saddle—a lower pass between peaks. It lies above 220 m but below 240 m.
Contours turn height into a readable code
A contour line connects locations that share the same elevation above sea level. If you walk along one contour without leaving it, you may travel around a hill, but you do not climb or descend. Labels on index contours help the reader work out the elevations of the lines between them.
The contour interval is the fixed vertical change from one line to the next. It is not the horizontal distance between lines. If the interval is 20 metres, crossing from 100 m to 120 m means climbing 20 m, whether the lines are close together or far apart on the page.
The photograph shows what the land looks like from one position. The topographic map shows elevation, slope, water, routes, and spatial relationships across the area. Each source reveals something the other cannot.
Spacing shows slope; labels show elevation
Closely spaced contours show that elevation changes quickly over a short horizontal distance, so the slope is steep. Widely spaced contours show a gentle slope. Close lines do not automatically mean high elevation. A low cliff can be steeper than a tall, broad hill.
Relief is the difference between the highest and lowest elevations in an area. A landscape from 200 m to 900 m has 700 m of relief. Elevation tells the height of one place; relief describes how much the land rises and falls across an area.
Contour bends reveal valleys and ridges
Where contours cross a stream valley, they usually bend into a V that points upstream toward higher ground. Water flows downhill in the opposite direction. A ridge separates drainage, so its contour bends point away from higher ground. Checking streams and elevation labels prevents the two shapes from being confused.
A cross-section changes the overhead map into a side view. Draw a line from A to B, mark every contour crossing, transfer each elevation to a graph, and connect the points smoothly. Cross-sections make steep walls, gentle slopes, peaks, and valleys easier to compare.
Branching contour Vs identify side valleys flowing toward the main canyon. Extremely close contours mark steep canyon walls. The map is harder than the practice diagrams, but the rules for interval, slope, valleys, and ridges remain the same.
Use the map to make a decision
Route planning requires more than choosing the shortest line. Count contour crossings to estimate climbing, examine spacing to identify steep sections, locate streams and cliffs, and use scale to compare distance. A longer path along a valley floor may be safer and require less energy than a short path over a ridge.
A topographic map is a measured model, not a live report. It may show trails, buildings, water, vegetation, and elevation, but it cannot prove current snow, fire, flooding, trail damage, or closures. Safe decisions combine the map with recent weather, official notices, and direct observations.
A route following the broad valley crosses fewer contours than one climbing the valley wall. Use the scale for distance and contour spacing for slope. The best route depends on the task, conditions, and acceptable risk, not distance alone.
GEOGRAPHY WORDS
a line joining points of equal elevation
the vertical elevation difference between adjacent contours
the difference between high and low elevation
a side-view profile constructed from map evidence
a darker or labelled contour line used to help read elevation
height above a stated reference level, usually mean sea level
the steepness or rate of elevation change across horizontal distance
an elongated area of high ground that separates drainage
GEOGRAPHIC INVESTIGATION
Plan a safe route across a topographic map.
- Find the contour interval.
- Locate the highest and lowest points.
- Mark steep slopes and stream valleys.
- Choose a route and justify the trade-off between distance and slope.
Reveal the geographic reasoning
The shortest route is not always the easiest or safest. Topography turns route choice into evidence-based judgment.
YOUR TURN
What do very closely spaced contour lines usually indicate?
STUDY + APPLY
Questions that rebuild the whole lesson
Answer from memory first. Open the explanation only after you have committed to an idea.
01UNDERSTANDINGWhat does every point on one contour line have in common?
Every point has the same elevation.
02CALCULATIONA map has a 20 m contour interval. What elevation change occurs across six intervals?
120 metres.
03COMPARISONHow are elevation and relief different?
Elevation is the height of one location. Relief is the difference between the highest and lowest elevations in an area.
04MAP READINGA contour V crosses a stream. Which way does the V point, and which way does water flow?
The V points upstream toward higher ground. Water flows downhill in the opposite direction.
05APPLICATIONWhy might a longer route require less effort than a shorter route?
The longer route may follow gentle slopes or a valley floor and cross fewer contours, while the short route may climb steep ground.
06SYNTHESISWhat can a topographic map support, and what current information must come from another source?
It supports claims about mapped elevation, slope, drainage, routes, and selected features. Current weather, closures, hazards, and trail conditions require newer sources.
PULL IT TOGETHER
Rebuild Chapter 1
01Map auditWhat five features should you check before trusting a map?
What five features should you check before trusting a map?
Purpose/title, legend, scale, orientation/projection, date and source.
02Coordinate correctionCorrect this location: Toronto, 79.4° N, 43.7° W.
Correct this location: Toronto, 79.4° N, 43.7° W.
43.7° N, 79.4° W. Latitude comes first, and Toronto’s longitude is about 79.4° west.
03Pattern or proof?Two maps show similar patterns. What can you claim?
Two maps show similar patterns. What can you claim?
The variables may be related, but the maps alone do not prove causation.
04Contour callA trail crosses ten 10-metre intervals in one kilometre. What is its elevation gain?
A trail crosses ten 10-metre intervals in one kilometre. What is its elevation gain?
100 metres.
ORDER THE SYSTEM
Put the chapter chain in a logical order.
Use cause, process, and consequence—not memorized dates.
CHAPTER SELF-CHECK
Ten questions. Whole chapter.
QUICK REVIEW
You should now be able to…
✓ define physical and human geography
✓ use the four concepts of geographic thinking
✓ audit a map’s purpose and limitations
✓ locate places with latitude and longitude
✓ interpret thematic data cautiously
✓ read elevation, slope, valleys, ridges, and relief from contours
CHAPTER SOURCES
